Cast iron cover complying with FF En124, class B125 available;
Oil alarm system available (required by En858-1);
Possibility to incorporate a by-pass directly within the equipment structure;
High storage capacity for separated products;
High mechanical resistance and corrosion protection;
Light and easy to install and maintain ;
Without power consumption;
Fire Class Reaction
Dual (Lamellar/ Foam)
Rotomatic Closure Device
Included (System Always Calibrated)
Protective Polyethylene Cover

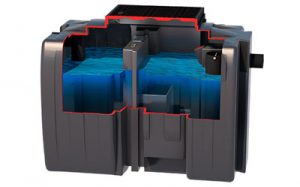

ECODEPUL DEPUROIL Separators has CE marking , in accordance with the legal obligations that stems from the entry into force of the Directive 89/106EEC on Construction Products , fulfiment all the requisites of the European Standard En 858-1:2002. ECODEPUR DEPUROIL Separators are class 1 under the Standard EN858, featuring a coalescing double filter and an Automatic closure device.These Separators achieve a concentration of less than 5mg/I, of oil under standard test conditions.
The ECODEPUR DEPUROIL Separators allow the entry of non-chemically emulsified oily waters containing hydrocarbons (Eg. Oil and Petro) with densities between 0.85 and 0.95 .Heavier materials (sludge , sand, etc ) settle into the Pre-sludge Trap compartment and are trapped there .This compartment also holds hydrocaborns that easily float.
Service stations ( including private supply post and cooperative);
Fuel storage and distributions areas;
Vehicle workshops ;
scap yard ;
Car Parks ;
L-length/ I – Width/ H- Height
Test Conditions EN 858
All measurements are given in millimeters .For information about vlome upper contact our technical service/ business.
The foolowing items need to be checked at least every three months:
